For those that require even more tuning capability, we offer a full line of coil-over shocks to suit the most advanced suspension setups. Start by choosing the ideal spring specifications from our expansive selection of single or multiple-rate coil combinations. Then we will independently set rebound and compression valving to complement your spring selection and vehicle specifications.

Once installed, you can adjust ride height, preload and travel to suit your application and performance requirements. Integrated spring and shock performs better and requires less space. Make fast, easy and extremely precise coil spring adjustments without removing from vehicle. Standardized sizes ensure a broader range of high performance springs are readily available for your application. The compact design fits tight mounting locations where traditional coil springs would never work.

Velocity sensitive valving automatically adjusts to terrain for improved control, handling and comfort. Radflo's exclusive Freeflo racing piston utilizes adaptive damping technology to automatically match shock performance to surface conditions. Multi-stage compression and rebound damping characteristics can be independently customized to suit your vehicle setup and driving preferences.

Completely rebuildable, serviceable and tunable for virtually unlimited service life. Because all shocks wear out eventually, we designed every single component to be easily serviced or replaced. Even the individual valve shims can be changed to fine-tune damping performance. Our highly experienced technicians can perform these services, or you can service the shocks yourself for immediate results. Exceptionally strong piston rod assembly designed for the harshest off-road racing conditions.

Available in 0.625 inch, 0.875 inch and 1 inch diameters, our Nitro Steel rod and slippery bronze rod guide provide unyielding performance in the roughest terrain. Multi-direction, triple lip sealing system prevents oil contamination while ensuring excellent gas and oil retention. Endurance inspired design provides consistent, fade-free performance and unmatched reliability.

Radflo shock absorbers are engineered to outlast and outperform the competition. All components are manufactured from the highest quality materials and machined to exacting tolerances. The result is consistent and dependable performance race-after-race. Dual spring hardware included. Springs sold separately.

All Radflo Off-Road Shocks are custom built-to-order, and uniquely valved to meet you and your vehicle's unique needs and specifications. Average turnaround time is 10 days. What we mean by Built-To-Order!

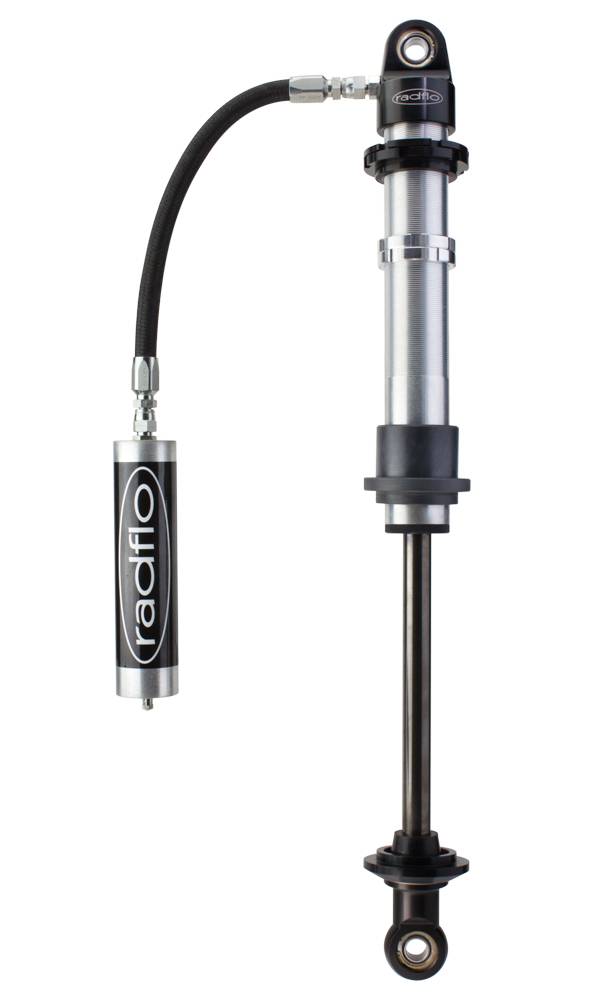

Product Details:

• Part Number: 5CR-009-9B
• Product Type: Off Road Coil-Over Shock with Remote Reservoir, 7/8 Inch Shaft, 90 Degree Fitting And Large Bearing Com10
• Bearing Size: 0.5 Inch
• Travel Length: 16.0 Inch
• Body Diameter: 2 Inch
• Body Material: SSID Alloy Steel Tube
• Body Finish: Clear Cadmium Plating
• Body Caps/Eyelets Material: CNC Machined 6061 Aluminum
• Body Caps/Eyelets Finish: Black Anodized
• Coil-Over Hardware: CNC Machined Aluminum with Nylatron Spring Slider
• Mounting Hardware: Universal Spherical Bearing And Hardware
• Rod Shaft Diameter: 0.875 Inch
• Rod Material: Nitro Steel
• Rod Finish: Chrome Plated
• Rod Guide Material: CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Piston Type: Radflo Aluminum Freeflo Racing Piston
• Seal Type: Combination Quad-Ring and Lip Seal (Rebuildable)
• Service Status: Consumer or Factory Serviceable
• Springs: Dual Spring Hardware Included (Springs Sold Separately)
• Valving Type: Velocity-Sensitive Deflective Disc
• Valving Tuning: Consumer or Factory Tunable
• Valving Adjustment: Self-Adjusting
• Oil Type: Radflo High-Temp Foam Resistant Suspension Fluid
• Pressurization: Nitrogen Gas
• Pressure Amount: 200psi
• Sold Individually
