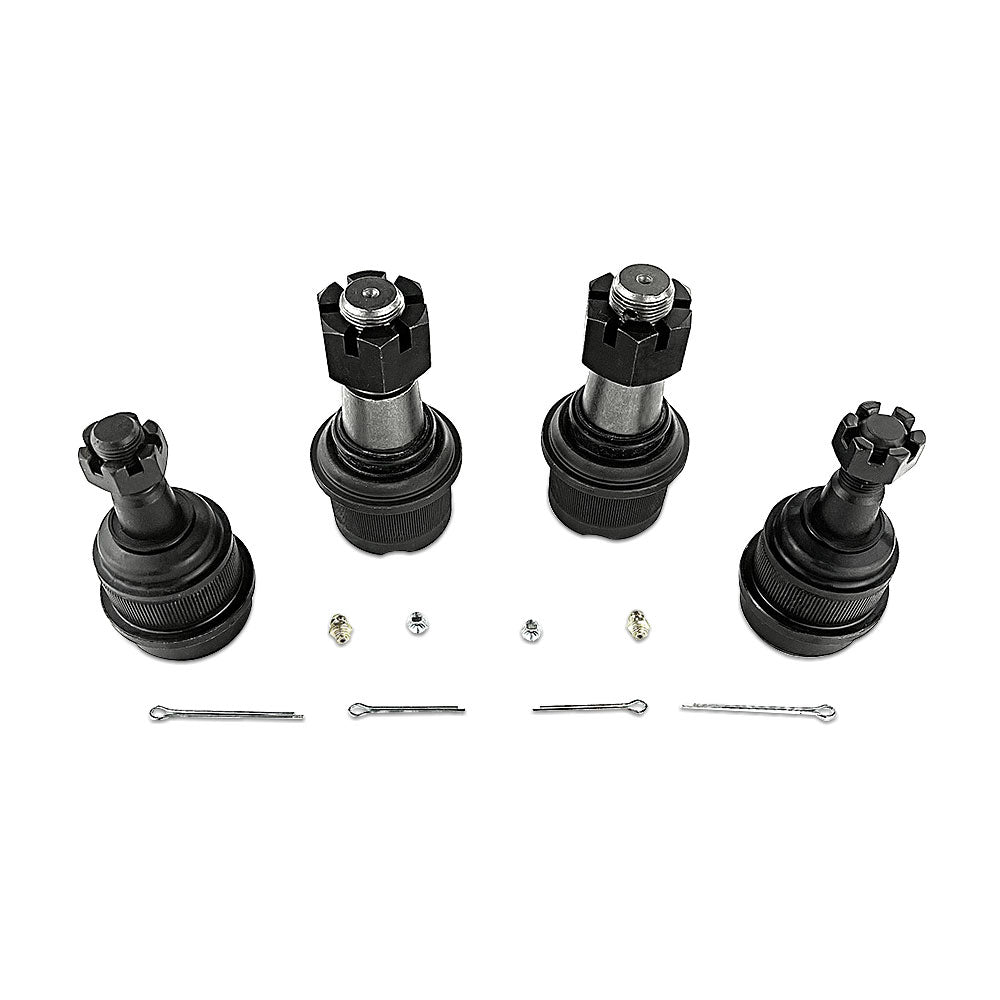

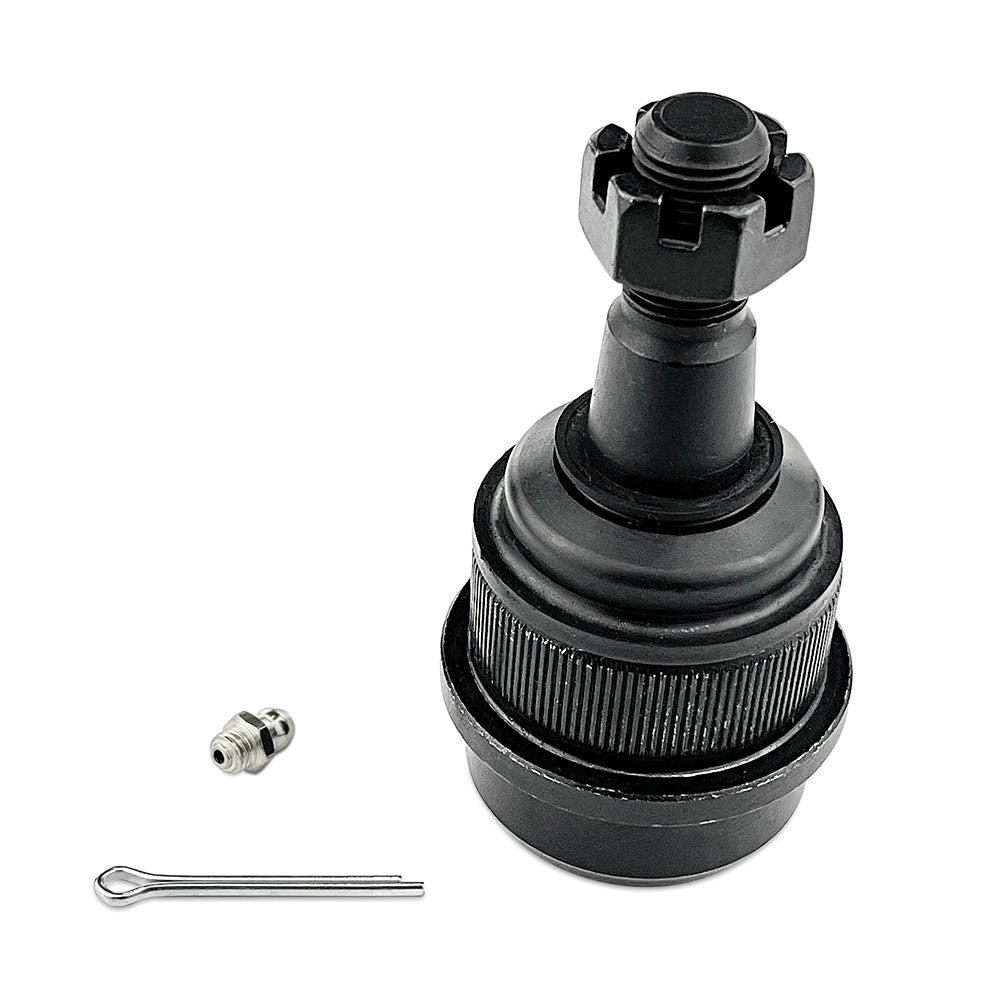

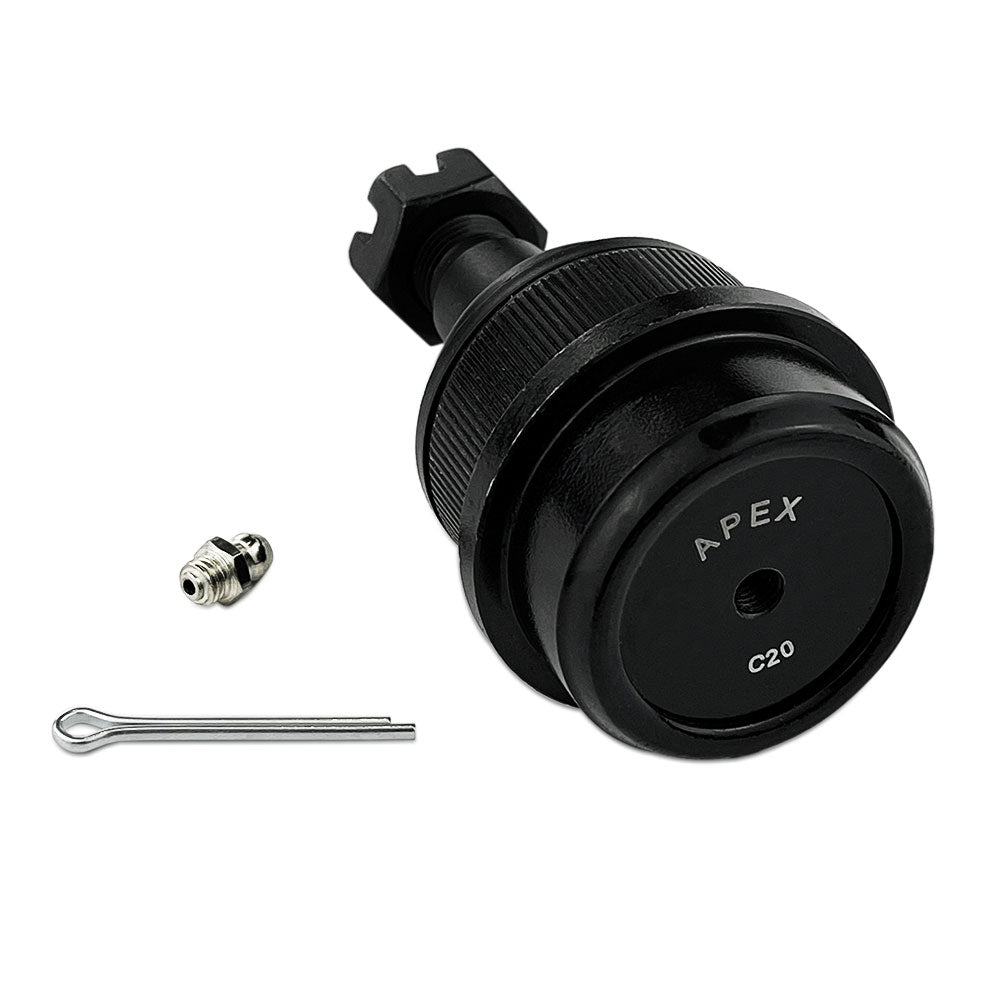

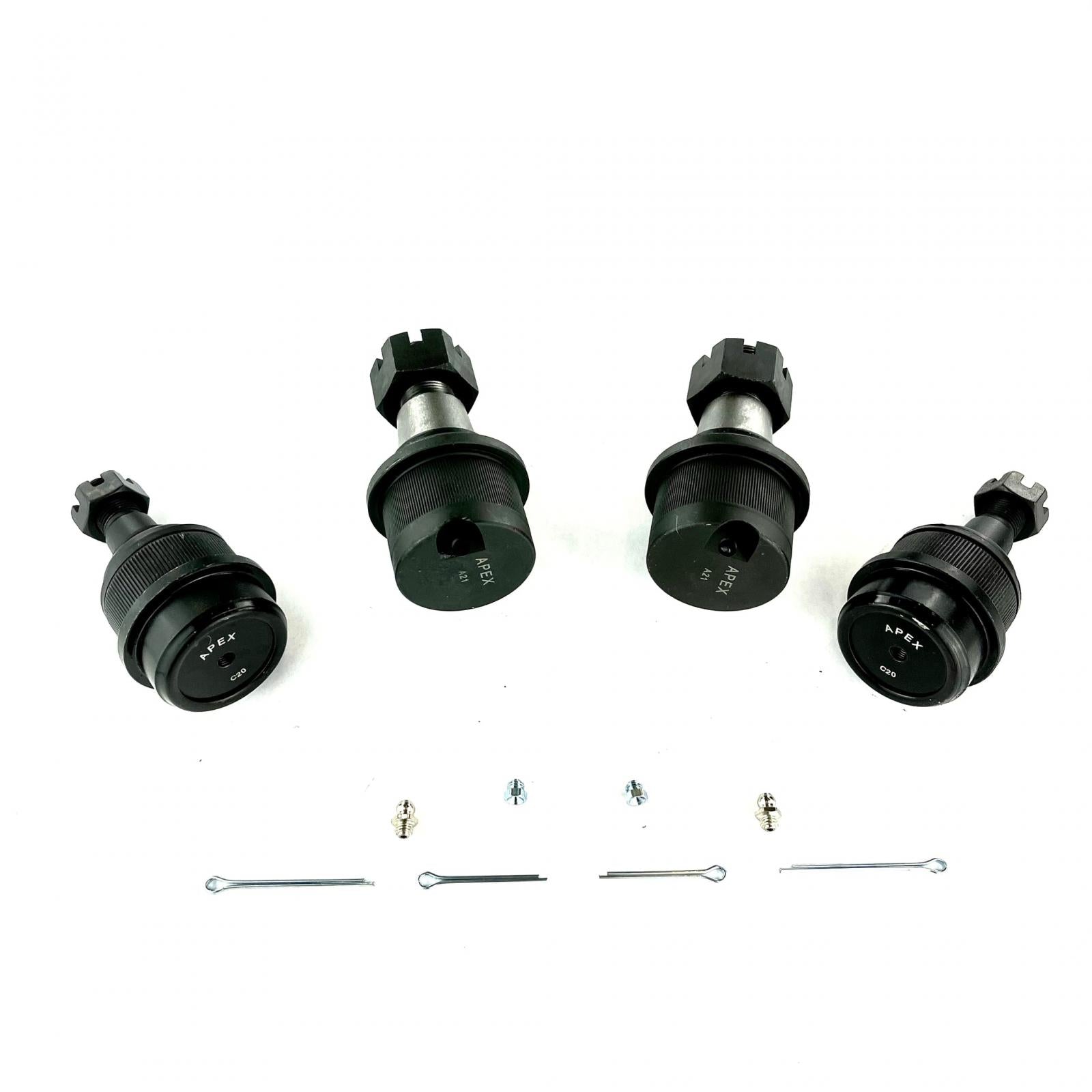

This ball joint comes in both un-knurled and knurled housing. This is the KNURLED housing version. For the un-knurled housing, see our Kit111.

How to Choose? For older trucks that the ball joints have been replaced in the past, or high mileage trucks, we recommend the knurled version. For newer trucks with the original factory ball joints, or low mileage older trucks, we recommend the un-knurled version (BJ130)
What It Fits:

• Dodge RAM 2500 (2014-2019) 2WD or 4WD
• Dodge RAM 3500 (2014-2019) 2WD or 4WD

The Special Sauce:
Housing

• SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
• Knurled Housings: The preferred design for aftermarket installations.
• CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

Ball Studs

• SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
• Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
• Polished Ball Studs: Built like an anti-friction bearing with extremely precise tolerances.
• Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
• Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

Bearing Design

• UPPER: Carbon Bearing Design: Used mainly in Jeep and Dodge upper ball joints is the solver of all things wobbly. Like all our products.
• LOWER: Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), can be polished smooth as steel, is anti-friction, doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

Boots

• CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
• Internal Seal Boot: The boot is coined onto the ball joint, for superior sealing against contaminants.

Finish

• UPPER: E-Coat Finish: Durable e-coat treatment.
• LOWER: Phosphate Finish: Extremely durable. Double coated. Rugged look.

Hardware

• Grade 8 - Class 10.9 Hardware: Superior tensile strength.
• Castle Nut: Industry standard where high vibration loads occur.

Lubrication

• Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
• Greaseable: Because it should be.
• Pre-Greased: Just in case you forget, we have you covered.
• Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
• Zerk Fittings: Included for every application.

Speciak Features

• LOWER: Custom Features: Side angle Zerk housing with extended Zerk fitting for easier maintenance.

Where It Fits:

• Vehicle Position: Front Upper, Front Lower
• Quantity per Vehicle: 1
• Moog Interchange: K7460 and K500351
• XRF Interchange: K7460X and 11-04887

Fits: 2014 Ram 2500 Big Horn, 2014 Ram 3500 Big Horn, 2014 Ram 3500 Tradesman, 2014 Ram 2500 SLT, 2014 Ram 3500 SLT, 2014 Ram 2500 Power Wagon, 2014 Ram 2500 Outdoorsman, 2014 Ram 3500 Lone Star, 2014 Ram 2500 Lone Star, 2014 Ram 3500 Laramie Longhorn, 2014 Ram 2500 Laramie Longhorn, 2014 Ram 3500 Laramie Limited, 2014 Ram 2500 Laramie Limited, 2014 Ram 2500 Laramie, 2014 Ram 3500 Laramie, 2014 Ram 2500 Tradesman, 2016 Ram 3500 Limited, 2016 Ram 2500 Limited, 2017 Ram 3500 Lone Star, 2019 Ram 2500 Lone Star...
