Jeep Wrangler Drag Link Flip Kit (2007-2018, JK)

This Jeep Wrangler JK drag link flip kit was designed to correct steering geometry with a lifted Jeep Wrangler JK. The JK drag link flip kit was designed to be used with the Clayton Off Road 3.5 and 4.5 inch lift kits and welding is required to install this kit.
Our Jeep JK drag link flip kit also raises the trackbar and will add clearance between the trackbar and differential cover.

It also strengthens the trackbar bracket by bolting our ј bracket and welding it to the front axle.

Note - This new ј trackbar bracket is designed to be bolted into the stock location, then welded for superior strength. It also incorporates a new relocated lower swaybar mount. This bracket was designed to be installed with the three (3) supplied 3/8 bolts, and one (1) 9/16 bolt with spacer and allows for temporary driving without welding.
Basically you can drill and install this kit in your driveway, then drive to a certified welder, and have him weld both sides of the bracket.

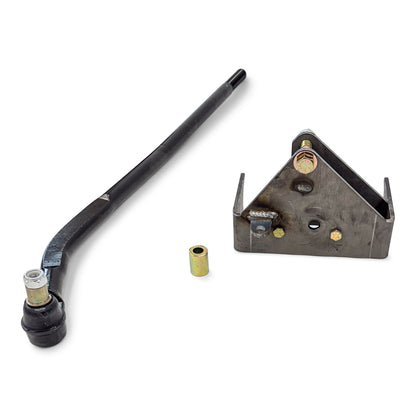

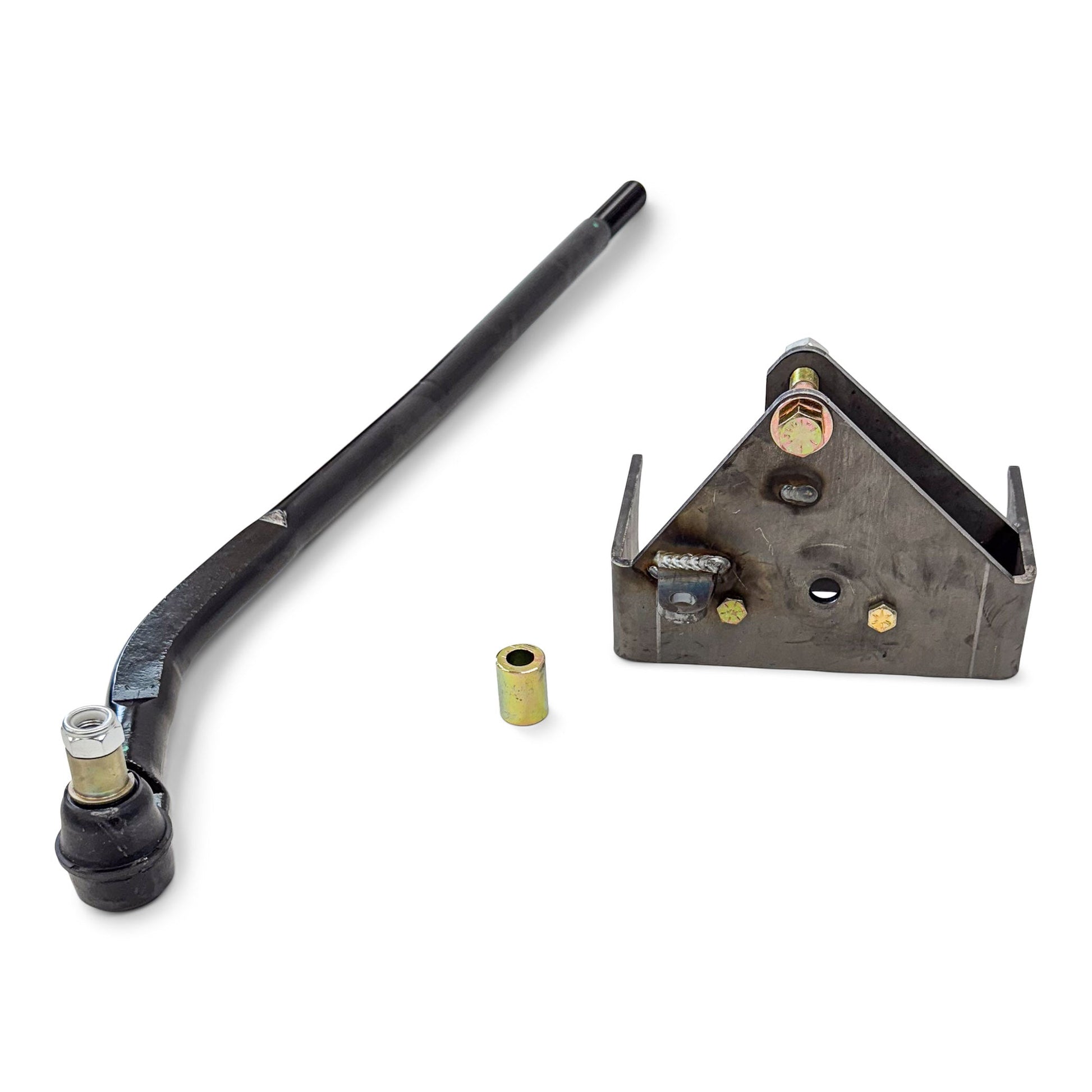

Parts List:

• OEM style drag link
• CNC machined insert
• Metric locknut
• ј trackbar bracket
• 9/16 grade 8 bolt with spacer
• (3) 3/8-16 grade 8 bolt, lock washer and nut

Tools Required:

• Welder
• Grinder
• Ѕ electric drill with 7/8 drill bit
• Standard hand tools to remove and install bolts

Note:

1. Drilling, cutting and welding are required to install this kit.

Clayton Off Road is known for the quality of our Jeep parts, each part we make, like our Jeep JK drag link flip kit, is tested by our team before it's released to the Jeep JK community. If you need additional help or have questions about this JK drag link or any other product on our site for your Jeep just give us a call or email and we'll get you answers you need for the performance you want.

Features:

• Improved Drag Link Angles
• 1/4 Inch Bolt/Weld On Trackbar Bracket
• CNC Machined Tapered Insert
• Relocated Steering Stabilizer Mount
