Clayton Off Road Jeep Wrangler JK suspension lift systems are designed to give a smooth ride both on and off road while maintaining excellent handling characteristics.

These are 100 percent bolt on systems and can be installed using basic shop tools. One key feature with the new 2007-2018 JK front long arm kit is our bolt-in 3 piece cross member. The cross member bolts into the OEM location and has pockets for the forged 2.5 inch johnny joints which allows for maximum ground clearance. This cross member can be simply bolted in, and is also setup so it can be welded in for the more abusive drivers. Like all other Clayton Off Road cross members the center section is removable, making any transmission changes simple and can be done without touching any suspension arms. The rear ј bolt on bracket was designed to allow for 4 truly long arms. This bracket can be installed without removing the gas tank, and uses 8 bolts to securely clamp to the frame rail. Both the 3 piece cross member and rear frame brackets were designed using the latest 3D Solid Works program, CNC laser cut, and CNC bent for maximum strength and accuracy.

This system is designed to be used with 37x12.5 Inch tires, with proper backspacing. Recommended backspacing for a 37x12.5 Inch tire is 4.5-4.75 Inch.

Note:

1. We recommend either Fox, Bilstein's or Falcon shocks.
2. On a 2 Dr Model a rear adjustable trackbar is required.
3. Exhaust modifications are necessary due to clearance. A loop delete and spacer is required.
4. Front Cv Style Driveshaft is required on all models
5. Rear Cv Style Driveshaft is required on a 2 door, and recommended on a 4 door.

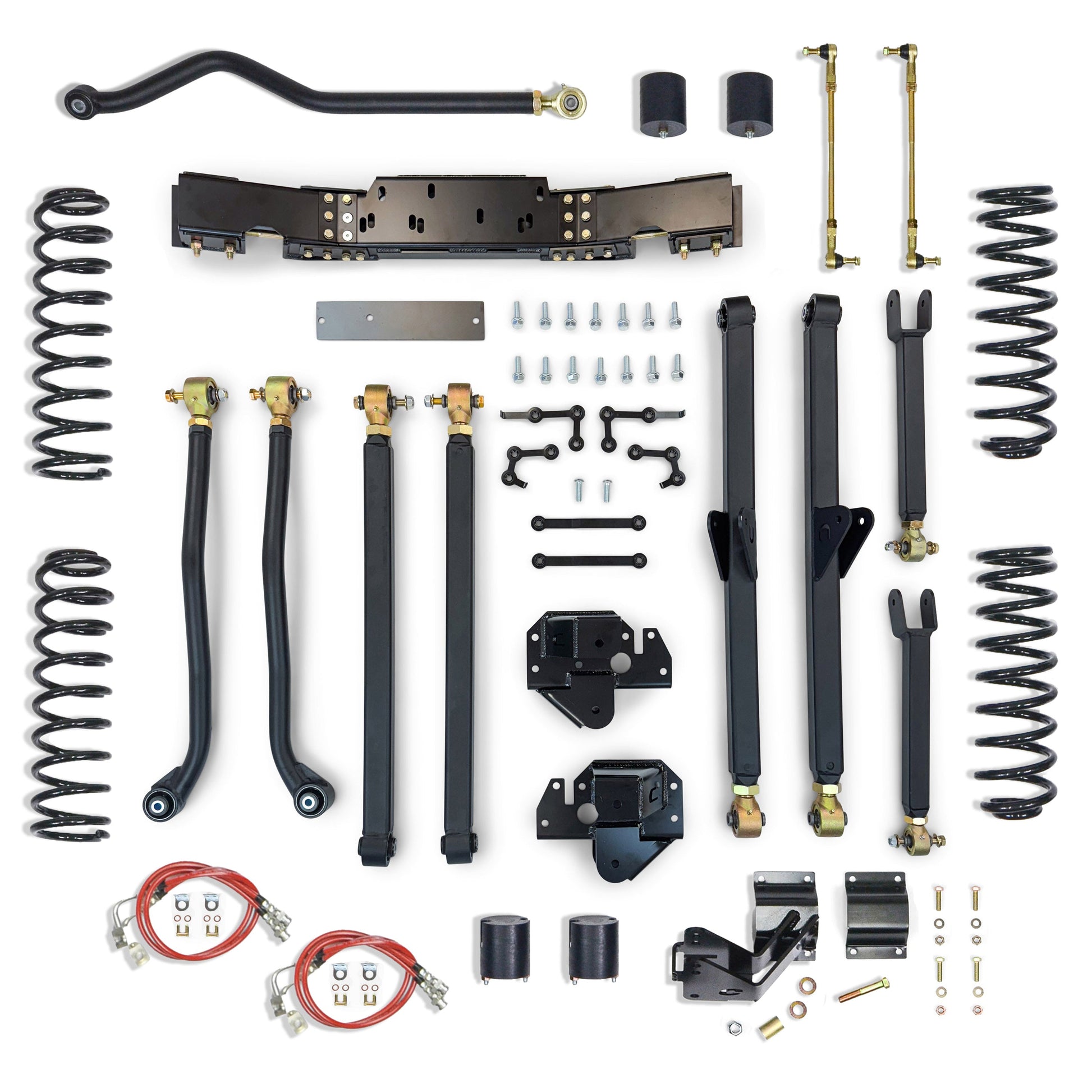

2007-2018 Jeep Wrangler JK 4.5 Inch Long Arm Lift Kit (2DR/4DR, Rubicon/Non-Rubicon, Auto/Manual)

Features:

• 100 percent Bolt On System
• 3 Piece Front Cross Member
• 8 Fully Adjustable Control Arms
• 1/4 Bolt On Rear Frame Brackets
• HD Adjustable Trackbar
• DOT Approved Stainless Steel Brakelines
• Lifetime Warranty*
• Made In The USA
