These all-inclusive TeraFlex Sport ST (Street & Trail) Suspensions Systems deliver true street & trail (ST) performance and capability in a dependable and maintenance-free package.

The 3.5 Inch Sport ST3 Extended-Travel Suspension System's Front Control Arm Sport Frame Brackets provide a smooth ride and competent handling, while the Rear Upper Control Arm Extended-Travel Axle Brackets, Rear Driveshaft Lowering Spacers, Rear Forged ST Sway Bar, and Rear Extended-Travel Shock Accessory Kit safely provide 16 Inch of rear suspension travel.

The Front Lower and Rear Lower Track Bar Brackets correct axle position to provide a more positive steering feel.

Front Control Arm Sport Frame Brackets balance front caster angle and pinion angle to improve front suspension geometry on vehicles with 2.5-4.5 Inch Lifts.

The Front Lower and Rear Lower Track Bar Brackets improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

Extended-Travel Suspension Systems include carefully selected extended-travel components to safely provide 16 Inch of rear suspension travel.

This results in a simple install and drive bolt-on installation with no cutting or welding Required. These maintenance-free suspension systems provide superior on-road ride quality and comfort with maximum off-road flex. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Sport ST Suspension Systems can be installed on Friday, wheeled on Saturday, and driven to church on Sunday!

Does Not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability. Falcon shock absorbers and steering stabilizers available separately.

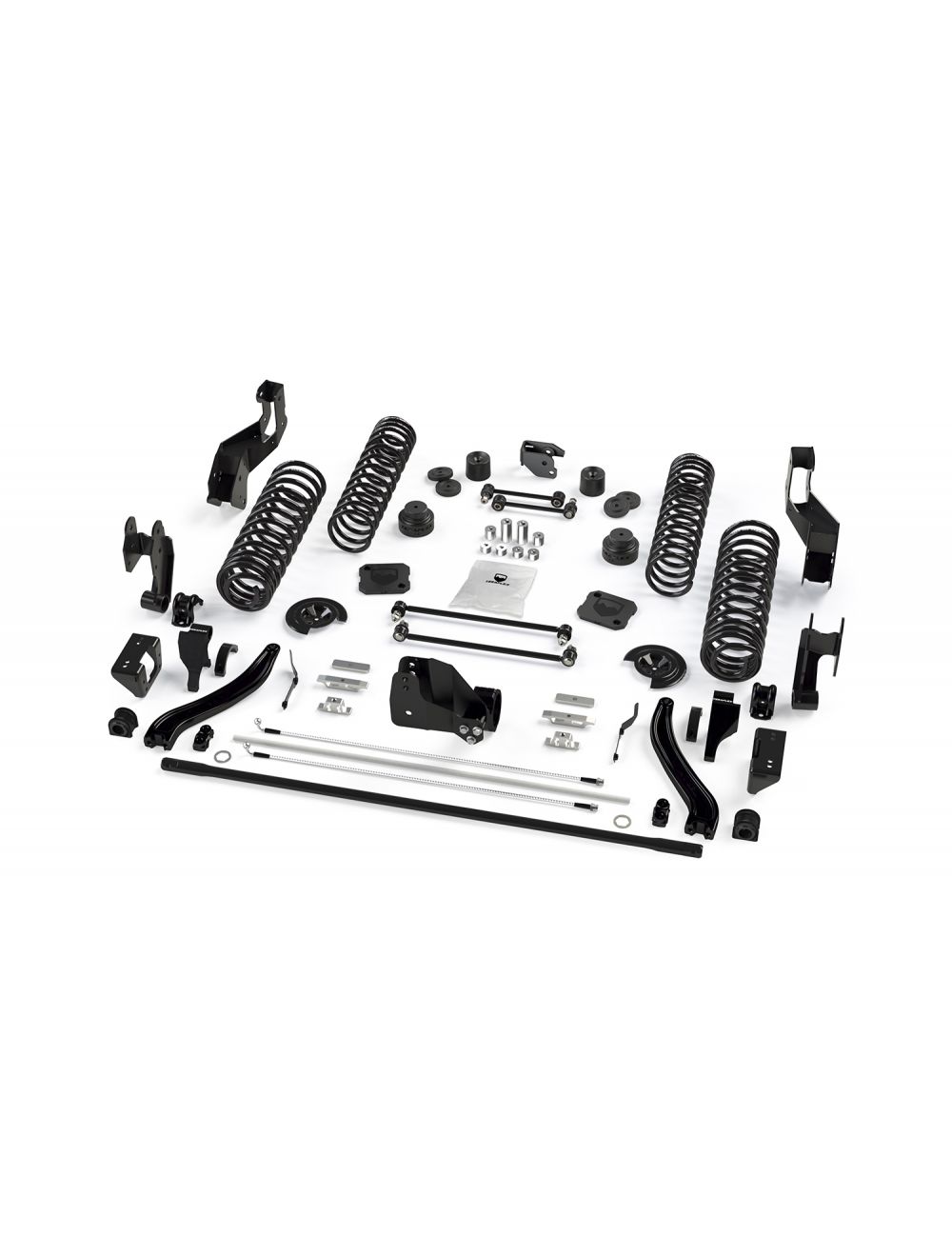

Includes:

• 3.5 Inch Lift Coil Spring Pair (Front: # 1873000) (Rear: # 1873100)
• Sport Frame Bracket Kit - Front Control Arm (2.5-4.5 Inch Lift) (# 1938125)
• Extended-Travel Axle Bracket Kit - Rear Upper Control Arms (1 Inch+ Lift) (# 1938225)
• Track Bar Bracket Kit (Front Lower 2.5-3.5 Inch Lift: # 1953250) (Rear Lower 0-6.5 Inch Lift: # 1963600)
• Progressive Bump Stop Kit - Front & Rear (0-4.5 Inch Lift) (# 1969200)
• 2 Inch Bump Stop Strike Pad Extension - Front Lower (# 12-01-109-200) x 2
• 0.5 Inch Bump Stop Strike Pad Shim - Front Lower (# 12-02-109-050) x 4
• 1.5 Inch Bump Stop Extension Kit - Rear Upper (# 1969300) x 2
• 0.5 Inch Bump Stop Shim Kit - Rear Upper (# 1969400)
• 0.5 Inch Bump Stop Strike Pad Shim Kit - Rear Lower (# 1969100)
• Front Sway Bar Quick Disconnect Kit (0-4.5 Inch Lift) (# 1764000)
• Forged ST Sway Bar Kit - Rear (2 Inch+ Lift) (# 1774700)
• 1.5 Inch Driveshaft Lowering Kit - Rear (# 4801000)
• Extended-Travel Accessory Kit - Rear (3.5 Inch+ Lift) (# 4834100)
• Coil Spring Retainer Kit - Rear Upper & Rear Lower (# 4954000)
• Brake Line Anchor Kit (Front: # 1101255) (Rear: # 1101455)
• All necessary hardware
• And more

Fitment Vehicle(s):

• JT Gladiator (pickup)

Specs:

• Lift Height: 3.5 Inch
• Max Tire Diameter:
• Sport/Overland Fenders: 33 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Sport/Overland Fenders: 35 Inch (w/ 3 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 35 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 37 Inch (w/ 2 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
