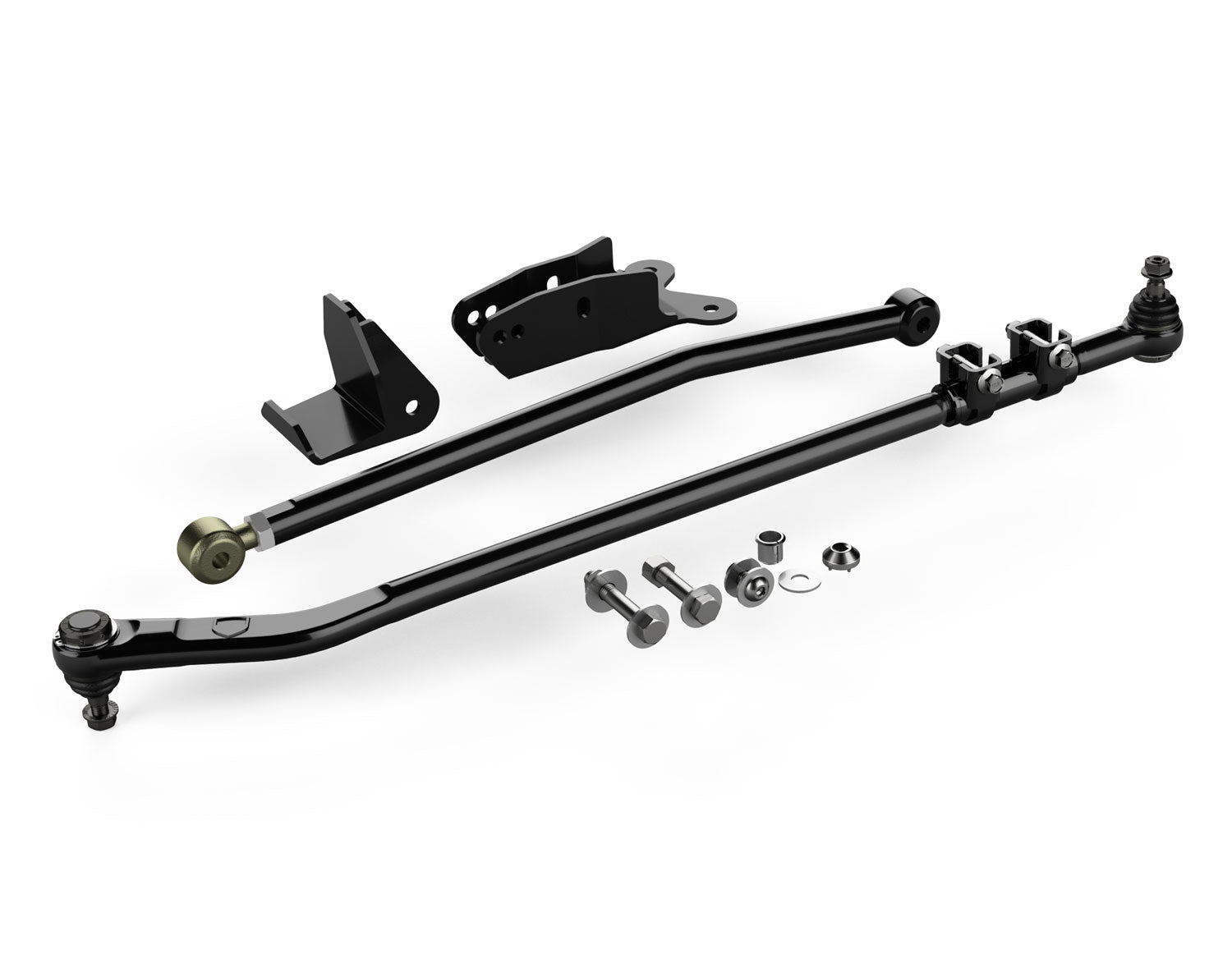

The TeraFlex JK: HD Forged Drag Link Flip Kit w/ Track Bar Drop Bracket & Frame Brace Kit addresses many front-end issues prevalent with lifted JK Wrangler/Unlimited models. Highly recommended for JK models with 4 Inch or more lift.

Flipping the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.

The Front Upper Track Bar Drop Bracket lowers the Front Track Bar mounting point to correct steering geometry for superior highway drivability. Multiple track bar mounting holes allow you to fine tune the track bar angle to reduce bump steer and other front-end issues. The Front Right Frame Brace and Front Frame Brace Bar reinforce the frame further reducing front end shimmy and excess frame movement.

This comprehensive kit combines our HD Forged Drag Link Flip Kit (# 1853930) with our Front Upper Track Bar Drop Bracket & Frame Brace Kit (# 1600444).

Compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs, and tie rods. Does Not affect operation of factory stability and traction control systems including ESP and ABS.

• HD Forged Drag Link Flip Kit (4-6 Inch Lift) (# 1853930):
  • HD Forged Drag Link w/ flipped pressed-in Joints
• Track Bar Drop Bracket & Frame Brace Kit - Front Upper (4-6 Inch Lift) (# 1600444):
  • Track Bar Drop Bracket Kit - Front Upper (4-6 Inch Lift) (# 1953000)
  • Frame Brace - Front Right
  • Frame Brace Bar - Front
  • All necessary hardware

Vehicle(s):

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

Axle(s):

• Dana 30 front axle
• Dana 44 front axle

Lift Height:

• 4-6 Inch Lift
